How to Choose the Right Floor Grinding and Polishing Tools: A Complete Guide (From Coarse Grinding to Mirror Finish)
In the floor renovation and concrete restoration industry, choosing the right grinding pads is half the battle. With so many diamond tools on the market—metal bond discs, resin bond pads, polishing pucks, and a jungle of connection systems—even seasoned contractors can get confused. This guide breaks down the selection process into three core dimensions: Machine Platform, Connection System, and Target Grit (Finish).
Step 1: Identify Your Machine Platform-Handheld or Walk-Behind?
The first step isn't about the pad itself—it's about the equipment you already have. Your machine dictates pad size, RPM, and pressure requirements.

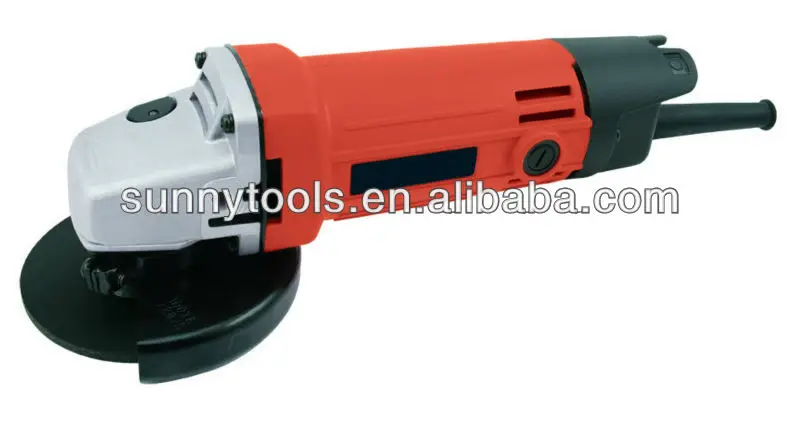

1.Handheld Angle Grinders (4", 5", 7")
Best for: Corners, stair treads, countertop edges, tight spots, and any area where a large machine can't reach.
Advantage: Lightweight and highly maneuverable—perfect for detail work and small patches.
Selection Tip: Choose 5-inch or 7-inch single-head grinding plates. In North America, the standard thread is 5/8″-11; in Europe, it's M14. Always check the pad's maximum RPM rating against your grinder's speed—safety comes first.

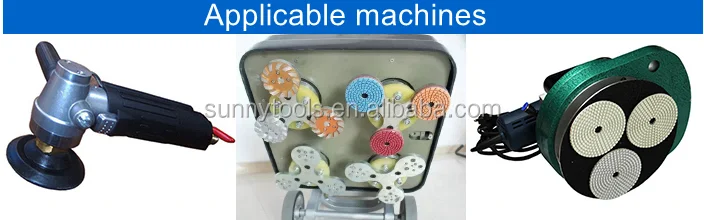

2. Single-Head / Multi-Head Floor Grinders (Mid-to-Large)
Best for: Garage floors, industrial workshops, shopping malls, large warehouses, and any expansive area.
Advantage: High production rates, heavy head pressure, and superior flatness—ensuring a consistent surface across thousands of square feet.
Selection Tip: Use multi-segment plates (3-head or 6-head planetary discs) to maximize efficiency. These are usually sold as matched sets, so each segment wears evenly.
Step 2: Know Your Connection System – If It Doesn't Fit, It Won't Spin
One of the biggest headaches in floor grinding is non-standardized mounting systems. Each brand has its own design, and a wrong match means a return.
HTC System: Uses the classic Slide-on wedge-style backing. If you're running a Swedish HTC machine, you must choose pads with the corresponding wedge profile.
Lavina System: Employs a rugged 3-bolt bolt-on or quick-change setup. Confirm that the bolt hole spacing on the pad matches the Lavina driver plate.
Husqvarna / Scanmaskin / SASE: These often use Redi Lock (twist-and-lock) or specific bolt-pattern plates.
Universal / Generic Bases: Many standard grinders use a 3-bolt or magnetic attachment. Before ordering, measure your Bolt Circle Diameter (BCD) carefully and send a photo to your supplier for verification.
Step 3: Define Your Desired Finish – Pick the Right Grit, Get the Right Result
This is the most critical step. The grit number directly determines the final look and feel of your floor. Think of grit as particle size – lower numbers are coarser, higher numbers are finer.
1. Coarse Grinding (30 Grit / 50 Grit) – Leveling & Coating Removal
Technology: Metal-bond diamond segments with large, aggressive diamonds for high cutting power.
Result: A completely matte surface with visible circular grinding marks and a rough texture.
When to Use: New concrete leveling, stripping thick epoxy or polyurethane coatings, exposing aggregate on severely worn floors.
Selection Tip: For hard concrete, choose a soft-bond pad (which releases diamonds faster); for soft concrete, choose a hard-bond pad. This is a common pitfall—if you're unsure, order a sample set and test on a small area first.
2.Medium Grinding (100 Grit / 200 Grit) – Refining Texture & Initial Closing
Technology: Transition to resin-bond diamond pads – finer diamonds that cut and polish simultaneously.
Result: The surface begins to show a slight sheen, coarse scratches disappear, and the floor feels smoother and more uniform.
When to Use: Post-coating refinement, preparing for penetrating sealers, or rough-polishing terrazzo floors.
Selection Tip: At this stage, water (wet grinding) or a vacuum (dry grinding) becomes essential to prolong pad life and control dust.
3.Fine Grinding (400 Grit / 800 Grit) – Gloss Emergence
Technology: Resin-bond pads with very fine diamonds – now shifting from cutting to polishing.
Result: A clear reflective shine appears; you can see light fixtures reflected, and the surface feels smooth like natural stone.
When to Use: Retail showrooms, high-end garages, hospital corridors, food processing plants – anywhere that demands both aesthetics and easy cleaning.
Selection Tip: Ensure all scratches from the 200-grit step are completely removed before proceeding; otherwise, they will remain visible forever.
4.High-Gloss Polishing (1500 Grit / 3000 Grit + Polishing Pads) – Mirror Finish
Technology: Polishing pads (often with diamond micro-powders or chemical enhancers) that burnish the surface.
Result: A high-gloss, mirror-like finish that clearly reflects ceilings and people walking by.
When to Use: Five-star hotel lobbies, luxury showrooms, premium office buildings, art gallery floors.
Selection Tip: The floor must be absolutely clean at this stage – any tiny particle can cause scratches that ruin all your previous work.
| Stage | Recommended Grit | Bond Type | Surface Effect |
| Leveling / Coating Removal | 30 / 50 | Metal Bond | Matte, heavy scratches |
| Refining Texture | 100/200 | Resin Bond | Low sheen, smooth |
| Fine Polishing | 400/800 | Resin Bond | Clear reflection, sleek |
| Mirror Polish | 1500/3000 | Polishing Pad | High gloss mirror, crisp reflection |
Whether you operate handheld grinders for detail work or heavy duty walk behind machines for large commercial projects, the right pad selection is the foundation of efficiency and quality.
